6.5HP WoodDuck Mud Motor

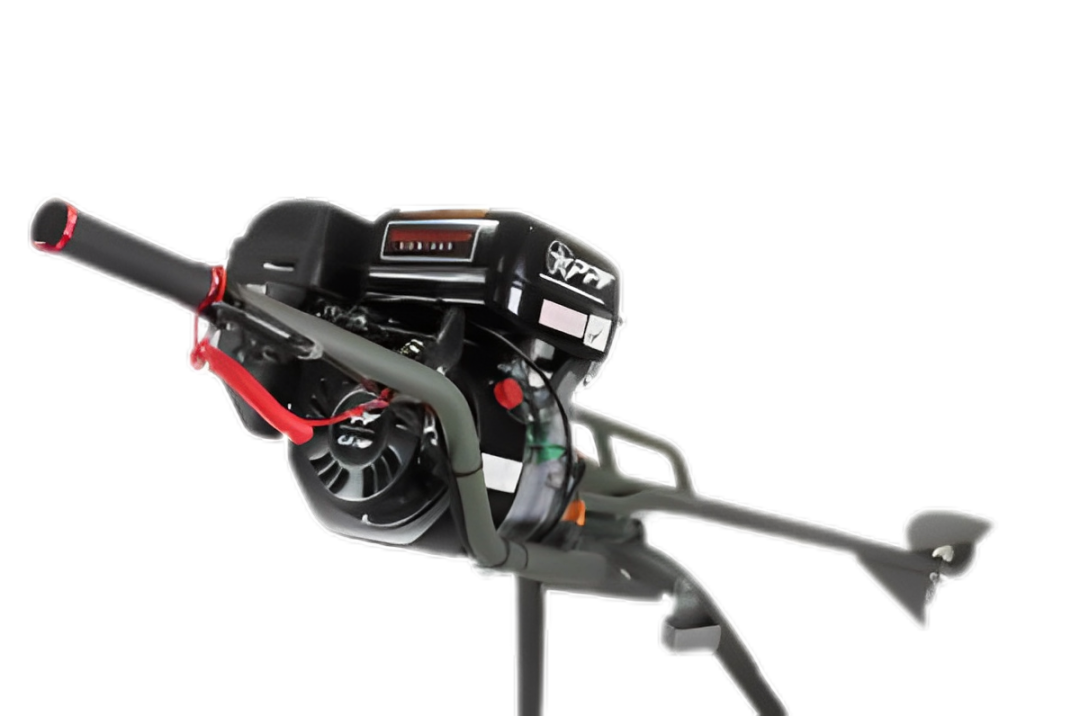

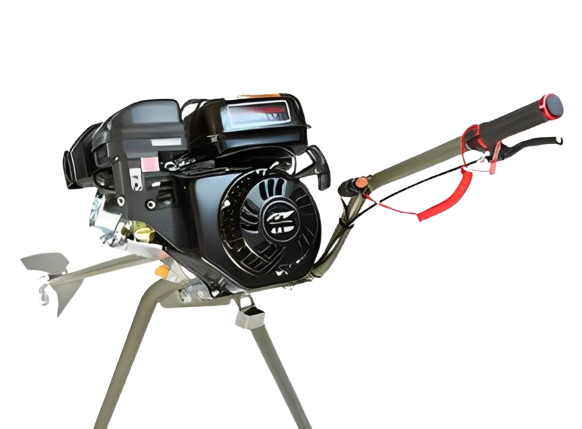

PPF Wood Duck 6.5 HP Mud Motor

Standard Features of the PPF Wood Duck-

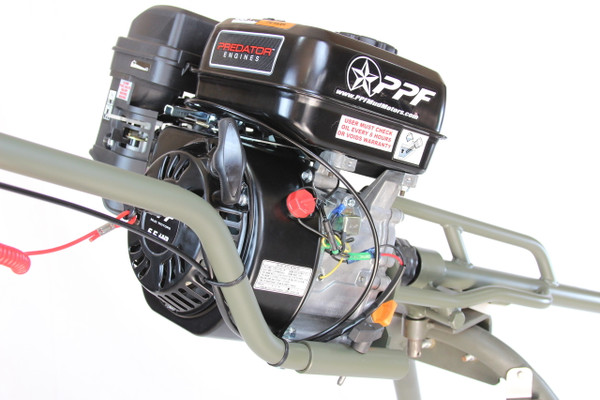

212cc Predator engine
Diamond Drive direct drive coupler system
Trigger throttle and locking grip w/ billet locking rings
Dual function tether and kill switch
Large linear load bearing system (the engine takes ZERO thrust to the crank unlike competitors)
Hill Marine weedless mud propeller, 15-5 heat treated stainless steel, 6.5”x4”
CNC formed DOM tubing construction
UHMW integrated trim tab/ bump stop
Adjustable cavitation plate for fine tuning
“Quick Drop” transom mount (allowing the motor to be removed or installed on the boat in less than 2 seconds)
Removable handle with quick release pin
Heavy duty pivot system (motor will pivot 360 degrees on boats with straight transoms)
Low maintenance grease able drive shaft
All parts are made by CNC and laser cut for a precision fit
Total weight of only 59lb (approx.) Depending on the engine manufacture, the total weight can vary up to 5lb Engine weights are listed below.
Included are detailed assembly and maintenance instructions.
OD green powder coat finish
All frames have a 2 year warranty

Complete 6.5hp PPF Wood Duck Mud Motor

$1,270.00

Dimensions

Overall length with standard handle: 88.5″
Length without handle: 65″
Drive shaft length: 55″

Weights

Complete frame assembly (without engine) weight: 24.5 lb approx. (This includes everything: grease, prop, etc., just no engine)
Predator: 37.5 lb (dry)
Briggs & Stratton 9.50 Series: 35.5 lb (dry)
Honda GX200: 35 lb (dry)

Engine Options

Predator 212cc- weight 37.5lb, 7 hp, 8.1 ft/lbs torque, 1 Year warranty through PPF. Warranty is for complete replacement only, no parts or labor. All Predators must be sent back to PPF at the customers expense and a replacement will be sent out free of charge.

Briggs & Stratton 9.50 Series

weight 35.5lb, 6.5hp, 9.5 ft/lbs torque, 2 year manufacturer warranty.

Honda GX200- weight 35lb, 6.5hp, 3 year manufacturer warranty, 9 ft/lbs torque.
some assembly required (engine ships separate from frame)
pick-up also available (fully assembled)
You may select an engine option below.
some assembly required (engine ships separate from frame)
pick-up also available (fully assembled)
You may select an engine option below.
